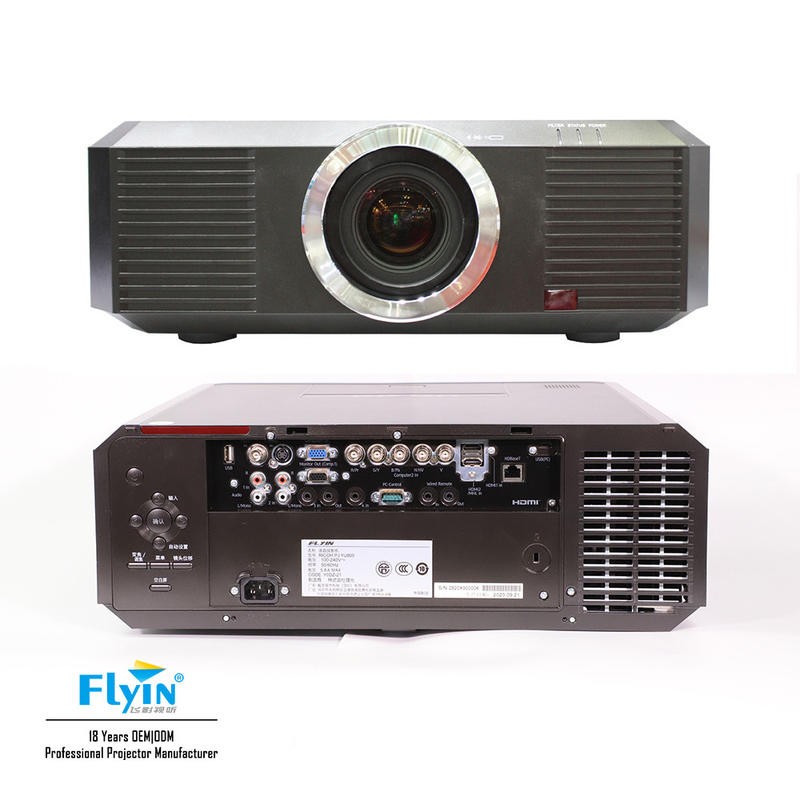

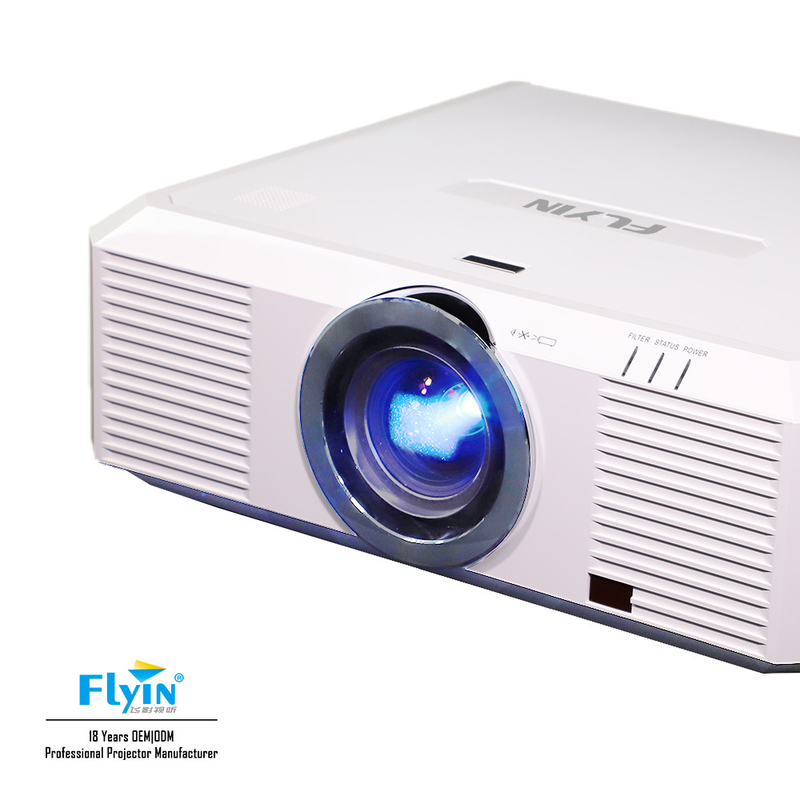

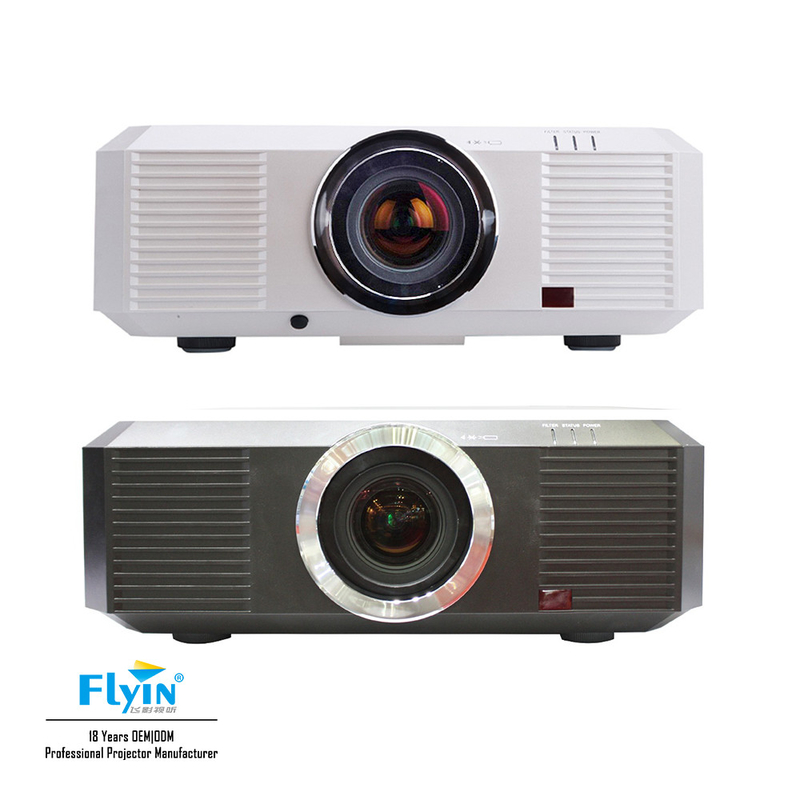

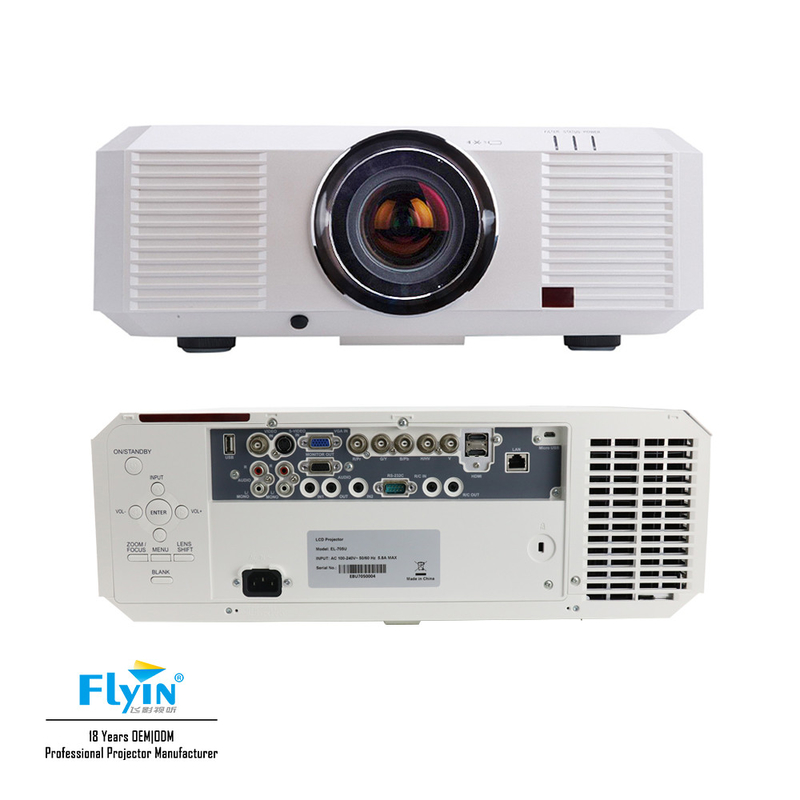

Overview For Flyin LARGE VENUE PROJECTOR
Model name: Flyin EL-705U • Power |
Features and functions
| Why Choose HLD/LED Lightsource? **. HLD-RGB 3LED 5,000 Hrs HIGH Lumen light source of New Technology The very latest High Lumen Density (HLD) technology means the EL-705U is first LED large venue projector to reach new, higher levels of brightness and 50,000 Hrs life. This works by channelling blue LED light into a phosphor rod, where it is discharged as a bright green light. Working in tandem with high brightness red and blue LED lights, it achieves an impressive 10,000 lumens and a 50,000:1 contrast ratio. This of course results in amazing picture quality, giving you a truly breath-taking image, with crisp, clear, bright colours. LED technology means images will continue to remain vibrant even after thousands of hours of projector use, with none of the deterioration or colour decay you might associate with a lamp projector. **.A Low Total Cost of Ownership When investing in a new projector it’s important to consider the total cost of ownership, and not just the initial purchase cost. Replacing traditional mercury lamps for example, can be a major expense. **.High Reliability – Low Maintenance There’s no need for a warm-up or cool-down period with an LED projector because LEDs are so much more energy efficient than traditional light sources. You are able to turn it on, turn it off, and turn it straight back on again without fear of damaging the ‘bulb’. **.With no phosphor wheel, no mercury, no colour wheel and no lamp, LED Projectors not only use less energy than other types of projectors, they create less waste, such as old lenses for instance, making them easier on the environment and cheaper to run. |
> Recommended Overview
• Display: |
> a wide range of market applications
| These high-brightness projectors have a wide range of market applications, the expression of these pictures tells us that the commercial field is their biggest application performance. In such an environment, the projector must be the best resolution, the best brightness. As well as expensive prices, Flyin offers a wide range of high-brightness projectors in Digital cinema room,School education, advertising, outdoor, large conferences, etc. |
> Standard lens support lens shift.
| Optional spare lens / Different Projection Throw ratio a wide variety of lenses from short to long focus zoom lens makes it possible for the projector to be installed in multiple locations. For extra convenience, these lenses can be used for the PR-800 Series. Both zoom and focus are powered as well as the horizontal/vertical lens shift function. also, the projector can be rotated around 360 degrees vertically so that the projector can be easily installed for variety of situations |
| Display Technology | 3LCD Panels x 0.76" | |
| Native Resolution | WUXGA / Native 1920 x 1200 Pixels | |
| Max. Computer Input | WUXGA / Native 1920 x 1200 Pixels | |
| Max. Video Input | 4K | |
| Brightness | 10,000 ansi Lumens | |
| Contrast | 40000:1 Contrast Ratio,Dynamic Video contrast ratio up to 10000:1 by HDMI | |
| Fan Noise | As low as 31 dBa | |
| Aspect Ratio | 16:10 Native, 4:3Compatible | |
| Projection Method | Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip | |
| Weight | 15 kg | |
| I/O Connectors | Inputs: | MHL,computer1,2,S-video,BNC,Audio in 1,Audio in 2,LAN,USB-A, |
| Maximum Resolution | 4 | |
| Computer Compatibility | Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, | |
| Video Compatibility | PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM | |
| Displayable Colours | 1.07 Billion | |
| Projection Lens | Standard lens: | F = 1.8 - 2.6, f = 24.0 - 43.2mm, 1.8x, |
| Power Lens Shift: | U/D 50%; L/R 10% | |
| Lens Optional: | Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens | |
| Throw Ratio | 1.44 - 2.60 : 1 | |
| Projection Screen Size | 40” - 300” | |
| Projection Distance | 0.6m - 46.5m (Depanding on optional lenses) | |
| Lamp Type/Lamp Life | 420W single lamp, 6000/5000 hours (ECO/BRIGHT mode) | |
| Keystone Correction * | Vertical: ±15° (Auto/Manual) Horizontal: ±15° (Manual), Corner Keystone | |
| Dimensions (W x D x H) | 48.0cm x 18.0cm x 42.0 cm (18.8” x 7.0” x 16.5”) | |
| Remote Control | Full function remote with direct source selecting,wifi, LAN | |
| Power Supply | 100-240V, 50-60Hz | |
| Power Consumption | 500W BRIGHT mode <5W Standby mode, 480W STD mode < 1W Standby mode | |
| Operating Conditions | 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m | |
| Uniformity | 90% | |
| Security | Kensington Lock, Password Protection | |
| Standard Accessories | AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, | |
| Optional Accessories | Ceiling Mount Kit, Additional Ultra long Cable | |
| Warranty | Projector 5-Years,lamp six months or 500Hrs | |
