4K SLPL Module 3 Chips Laser Digital Projector WUXGA Support 20000 Lumens

4K SLPL Module 3 Chips Laser Digital Projector WUXGA Support 20000 Lumens

Name: 4K SLPL Module 3 Chips Laser Digital Projector WUXGA Support 20000 Lumens
SKU: 103
Availability: InStock

$0.00

WUXGA Laser Digital Projector, 20000 Lumens Laser Digital Projector, SLPL Laser 3D Mapping Projector
- Features:Projection Up To 500"
- Brightness:20000 Lumens
- Native Resolution:WUXGA (1920×1200)
- Type:3LCD Laser Technology
- Contrast Ratio:3000000:1
- Screen:Up To 500" Super Big

SKU:

Tags:20000 Lumens 7D Holographic Projector, DLP Laser Outdoor Building Projector, 4k 3D Mapping Projector

Description
Reviews (0)

EL-906U

Ultra realistic image,

ultra-high brightness 20000 lumens

From installation to operation

Amazingly High Quality in Every Spect.

20000 Lumens Ultra High Brightness

3LCD Laser technology

The new native 3lcd display chip with high contrast has better filling rate. Combined with dynamic black contrast enhancement technology, it provides a high dynamic contrast of 3000000:1, improves the clarity, detail performance and gray level of the image, and makes the picture colorful and clear. With laser light source, the image quality can be fully improved and restored.

Powerful geometric correction function

It supports horizontal and vertical trapezoidal correction and quadrangular / hexagonal correction of the picture. Multi-point correction and arc correction can easily realize arc, corner and other special-shaped projection and multiple superimposed applications.

Native WUXGA Resolution Support 4K Videos Playblack

WUXGA's native physical resolution can better meet the needs of ultra clear projection. Even large-scale projection can also show lifelike image effects.

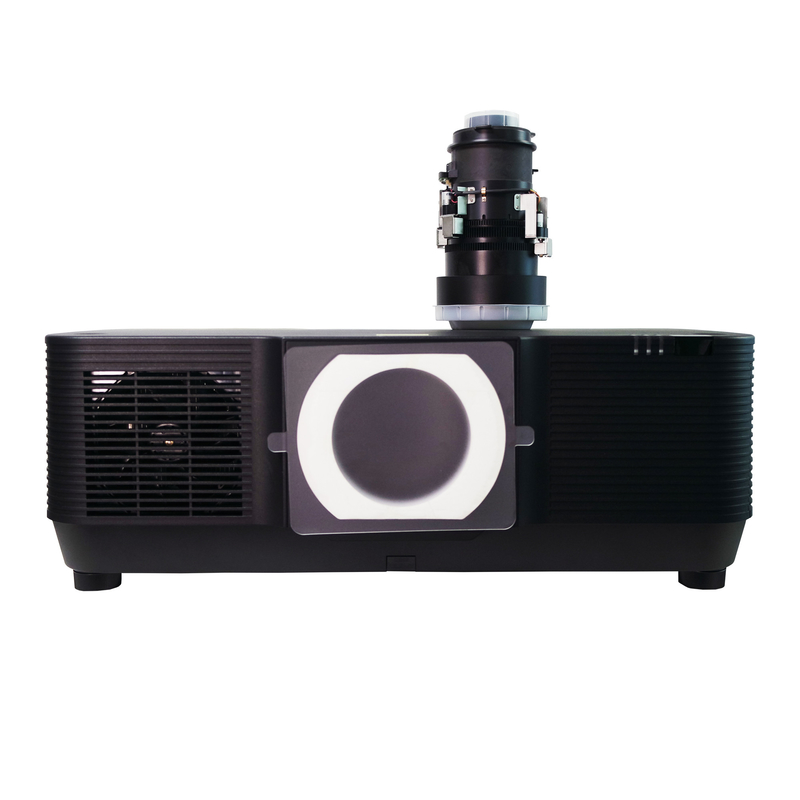

Lens replaceable

Provide HDMl output interface and support HDMl loop in and loop out

HDMl loop in and loop out, multiple superposition and other wiring applications are simple and convenient.

HD baseT TM interface

The standard HD baseT interface can remotely receive HDMl, RS232C and network control signals from more than 5 types of network cables. Realize 100 meter long-distance transmission of Full HD video signals and control signals, which is easy to install and stable and reliable signal transmission. Equipped with HDMl interface loop in and loop out, multiple superimposed, more convenient for application.

* DisplayPort Version 1.3
* HDMl 2.0 (x2) with HDCP 2.2
* Computer RGB in (x2, 15-pin D-Sub)
* RS-232C Serial Port
* USB (Type A, for accessory power, mouse, service)
* Wired LAN (RJ-45)
* HD base T In (RJ-45)
* HD base T Out (RJ-45)
* Audio in (3.5 mm)
* Audio out (3.5mm)
* 3D Synchronization (mini DIN 3 pin)
* Remote Control extension (3.5mm)

Specification

Main Spec	Projector Type	Liquid Crystal Display 3x0.76”WUXGA
	Chip Size	3*0.79'
	Resolucion nativa	WUXGA (1920×1200)
	Brillo	20,000 Lumens
	Uniformidad	90%
	Contraste	3000000:1
	Relación de aspecto	16:10:Native / 4:3 Compatible
Light Source	Type	Laser Technology
	Life	Standard :20000 hours Eco Mode:25000hours
proyector lens	Proyector Lens	1.3-3.02:1/2.3x (20000)
	Proporción de tiro	(0.36~5.50)
Keystone Correction	H	±50°
	V	±30°
Método de proyección		Ceiling,Front,Rear
Input		DVI-Dx1
		HDMI 1.4(SupportHDCP*3)x1
		15-pin Mini-Dsubx1
		HDbaseT*4x1
		Wired Remote x1 3.5mm
		RJ45×1(LAN Control)
		RS232(D-sub 9pin)x1
		USB-A1 (5V/1.5A) USB-B 1
		3G-SD *1 (Option)
Output		15-pin Mini-Dsubx1
		HDMI 1.4(Support HDCP*3) OUTx1
		3D-Sync x1
Power Input( Voltage&Frequency)		100-240V AC±10%,50/60Hz
Power Consumption		Normal:850W,ECO:750W
Case Material		Molded Plastic
Standby Power Consumption		＜0.5W
Dimension DxWxH		600218503mm
Net Weight		about 28.5 kg
Noice		Normal:35dB ECO:33dB
Working Temperature*5	High Altitude	0m-2500m(>1500m Using High Altitude Mode)
	Temperature	5-40℃,
	Humidity	10%-85%
Accessories		Remote Control ×1,Power Cable×1,VGACable ×1,CD-ROM(User Manual)×1, Quick installation manual, warranty card, Lens cover

Replace the lens channel, 1. Remove the dust cover of the projector. 2. Prepare the projector lens 3. Insert the lens into the projector with the arrow on the lens label facing up. 4. Turn the lens clockwise. Rotate until you hear a click. The lens is now on the projector.

Remove the lens preparation:

1. Turn on the projector to display the image.

2. Press and hold the lens release button for more than 2 seconds. The lens position will move to the original position.

3. Turn off the main power switch and unplug the power cord.

4. Wait for the projector chassis to cool enough to handle it.

5. When the release button at the bottom of the lens base on the front panel of the projector is fully pressed, turn the lens counterclockwise.

*Lens release 3. Slowly put down the projector lens. *After removing the lens, install the lens cover (front and rear) attached to the lens Before you save the goal.

*If no target is installed on Projector, install dust cover accessories Projector.

*Do not touch or remove any other parts, except the target and its related parts. Otherwise, you may encounter product failure, electric shock, fire or other events.

*Make sure the lens model is compatible with the projector before installation.

*The replacement of optional lenses must be completed by professionals. During the replacement process, please pay attention to the mechanical damage and thermal burn of the lens.

*For more information about the lens and its installation, please call your local dealer.

*Be careful when removing the lens. Don't let him down.

*When replacing the optional lens, for safety reasons only, be sure to cut off the power supply to avoid electric shock, fire and other safety accidents.
