SKU:

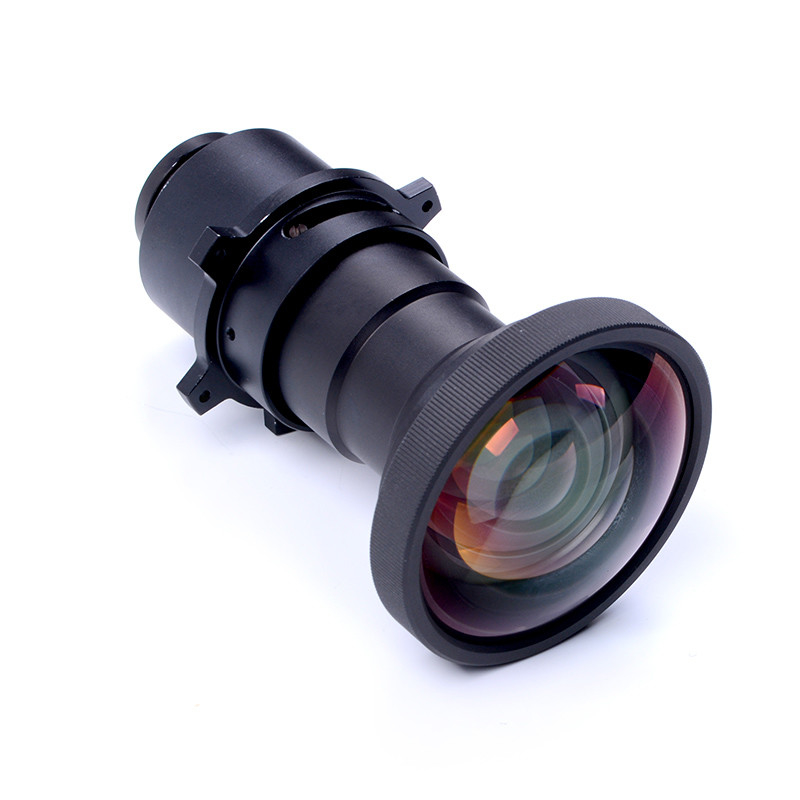

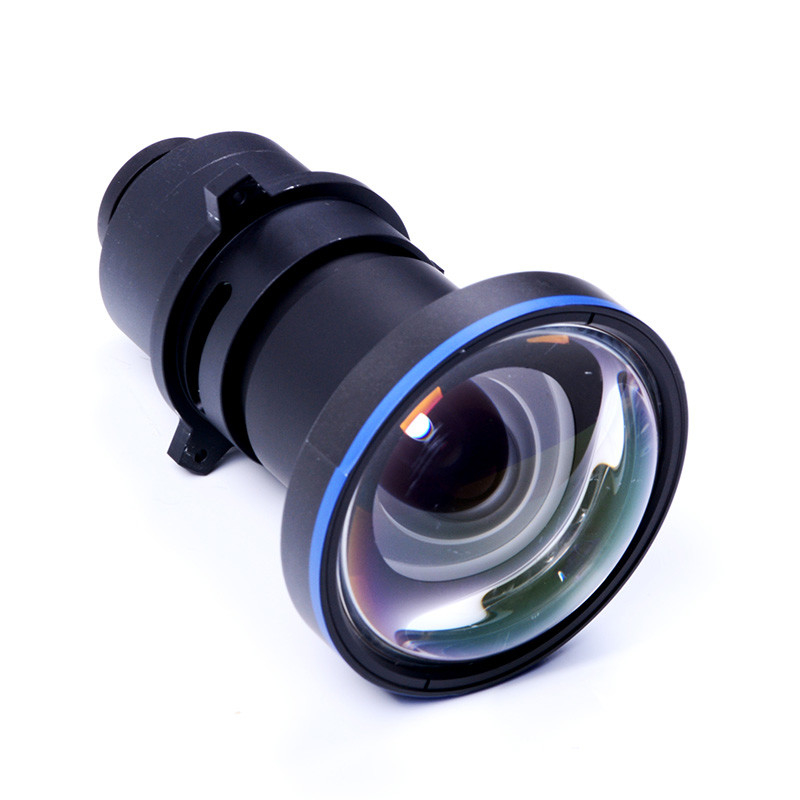

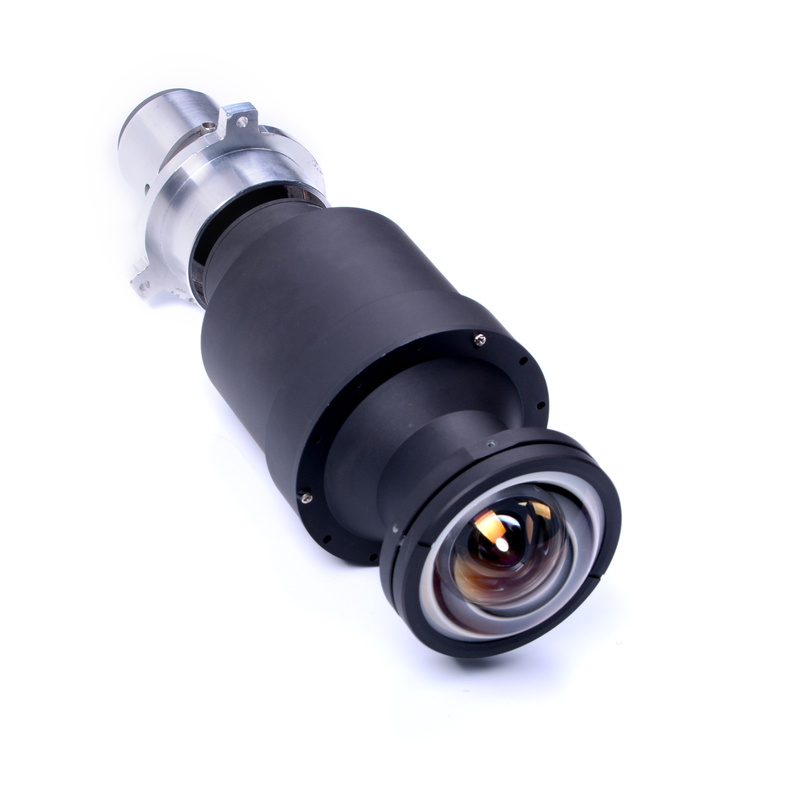

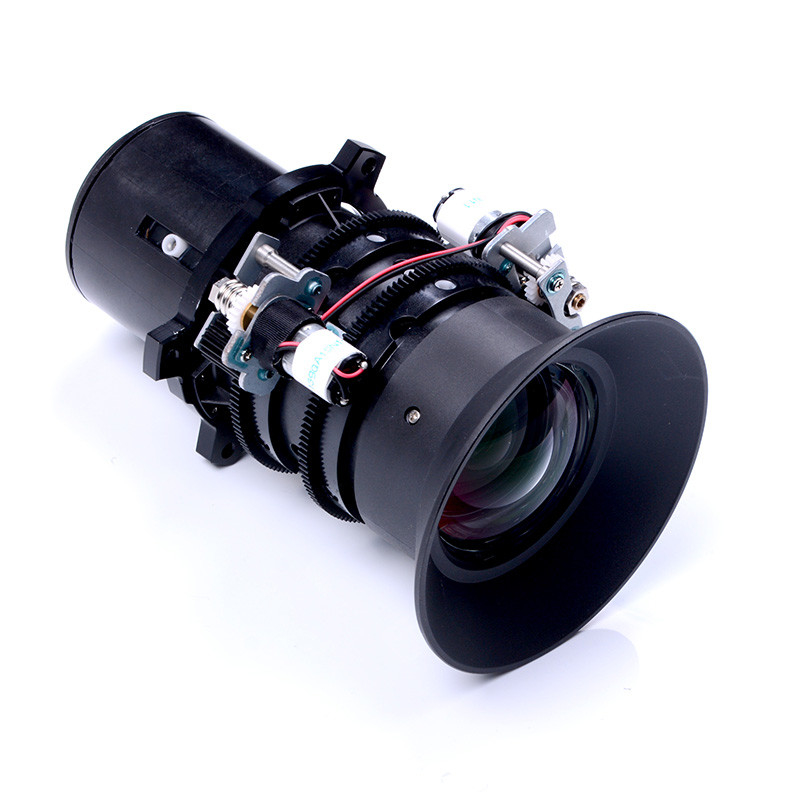

Short Throw Projector Fisheye Lens Wide Angle Double Concave Lens
Wide Angle Digital Projector Lens Compatible for most models in the market
E.g
CB-L1100U
CB-L1300U
CB-L1200U
CB-G7800
CB-G7200W
CB-G7100
CB-G7900U
CB-G7500U
CB-G7000W
CB-G7400U
etc
Each lens undergoes rigorous testing before leaving our factory.
All lenses will be refined to produce a good picture performance, if you have any questions please address us.
Good price, good results, not different from reality.
Our prices are much lower than original prices. Our lenses are no less than the lenses.
Enough stock, squeeze the office door to door.
We sell 6K-8K each year, and we have enough stock of our best selling lenses. If you request, we can deliver within a short time.
Each lens will be sent from Express door to door service, only 5-7 days will receive your lens array.
For example, this table is for reference only,
please contact the supplier for details
Model | Brightness | Resolution | Chip | Lens Model & Throw Ratio |
EL0808Y | ||||
CB-L1100U | 6000 | WUXGA | 0.76’’ | 0.8:1 |
CB-L1300U | 8000 | WUXGA | 0.76’’ | 0.8:1 |
CB-L1200U | 7000 | WUXGA | 0.76’’ | 0.8:1 |
Model | brightness | Resolution | Chip | Throw Ratio |
EL0808Y | ||||
CB-G7800 | 8000 | XGA | 0.79’’ | 0.8:1 |
CB-G7200W | 7500 | WXGA | 0.76’’ | 0.8:1 |
CB-G7100 | 6500 | XGA | 0.79’’ | 0.8:1 |
CB-G7900U | 7000 | WUXGA | 0.76’’ | 0.8:1 |
CB-G7500U | 6500 | WUXGA | 0.76’’ | 0.8:1 |
CB-G7000W | 6500 | WXGA | 0.76’’ | 0.8:1 |
CB-G7400U | 5500 | WUXGA | 0.76’’ | 0.8:1 |
Model Name | LCD 0.8 |
Resolution (Typical) | 0.76"WUXGA |
Throw Ratio (T/R) | 0.79 |
Type | Fixed Focus |
Telecentric | Yes |
F/# | F2.4 |
Offset Ratio | 90% |
Screen Size @ 1m | 59" |
Focus Length (f) mm | 13.55 |
MTF(@67lp/mm) | >45% |
Chromatic Aberration | ≦0.8pix |
Distortion(TV) | Max.±1% |
Max.Diameter*L (mm) | φ102x167 |
Materials | Glass+metal |
